Drainage systems are vital for keeping cities, suburbs, and infrastructure safe. When it rains heavily, thousands of litres of water need to be directed away from homes, car parks, and roads in a matter of minutes.
Sydney alone receives an average of 705 mm of rain (about 705 liters of water per square meters) over the wettest period of January to June. When heavy downpour hits, without the right drainage solutions, flooding, erosion, and structural damage can quickly occur.
Two of the most common but often misunderstood elements in drainage are drain grates and sewer lids. They might look similar, but they serve very different purposes. Choosing the wrong option can create major problems, including safety hazards, odour issues, and non-compliance with Australian Standards.
This guide explains the differences between drain grates and sewer lids, their applications, load ratings, materials, and maintenance requirements; giving you the knowledge to select the right solution for your project.

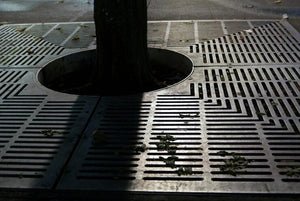

What Is a Drain Grate?
A drain grate is a surface cover with openings that allows rainwater to flow into underground stormwater systems while preventing large debris from entering. Picture it as a filter system for drainages.
Key Functions
-
Collects surface water from roads, driveways, and car parks
-
Prevents rubbish, leaves, and sediment from blocking pipes
-
Provides a safe walking and driving surface
Typical Applications
-
Residential driveways and patios
-
Car parks at shopping centres or office blocks
-
Streets and highways where water must clear quickly
-
Around buildings to protect foundations
Common Materials
-
Cast Iron: heavy-duty, strong, long-lasting, ideal for roads and highways
-
Galvanised Steel: durable, corrosion-resistant, widely used in commercial projects
-
Composite: lightweight, safe, non-corrosive, easy to handle during maintenance
Example: A suburban driveway with poor drainage may flood during storms. Installing a grated pit at the low point captures water before it reaches the garage.
What Is a Sewer Lid?
A sewer lid (also known as a manhole cover) is a solid, sealed cover used to protect underground sewer or utility chambers. Unlike grates, they are not designed to let water pass through.
Key Functions
-
Provides access for inspections and maintenance
-
Prevents odours and gases from escaping into the environment
-
Protects the public by covering deep utility chambers
-
Secures sensitive underground infrastructure
Add an picture here
Typical Applications
-
Sewer systems in residential neighbourhoods and cities
-
Stormwater chambers that require maintenance access
-
Utility tunnels containing electrical or communication lines
Common Materials
-
Cast Iron: heavy, strong, and able to withstand traffic loads
-
Concrete: cost-effective for light-duty residential or garden applications
-
Composite: lighter, resistant to corrosion, and tamper-proof
Example: In an urban street, sewer lids provide council workers with entry points to maintain underground sewer systems while keeping the public safe.
Key Differences Between Drain Grates and Sewer Lids
|
Feature |
Drain Grate |
Sewer Lid |
|
Purpose |
Collects surface water |
Covers access points to underground utilities |
|
Design |
Open slots for water flow |
Solid, sealed cover |
|
Materials |
Cast iron, steel, composite |
Cast iron, concrete, composite |
|
Applications |
Driveways, car parks, roads |
Sewers, stormwater chambers, utility tunnels |
|
Safety Role |
Prevents flooding and erosion |
Prevents falls, odour, and unauthorised access |
Key Takeaway: Drain grates manage water. Sewer lids provide sealed access.
Why Choosing the Right Cover Matters
Selecting the wrong cover type can cause serious issues:
-
Using a grate where a lid is needed: Odour escapes, unauthorised access becomes possible, and safety is compromised.
-
Using a lid where a grate is required: Water has nowhere to drain, leading to flooding.
-
Ignoring load ratings: Covers may crack, shift, or rattle under traffic.
A misplaced sewer lid can cause significant issues. What should be a simple solution could have potential catastrophic effect. A simple heavy downpour will reveal the critical difference between a sewer lid and drainage grate.
Load Standards in Australia (AS 3996:2019)
Both drain grates and sewer lids must comply with AS 3996:2019 - Access Covers and Grates. This standard defines load classes to ensure covers are suitable for their intended use.
Load Class Breakdown
-
Class A (up to 10 kN / 1 tonne): Pedestrian paths, gardens, lawns
-
Class B (up to 80 kN / 8 tonnes): Light traffic areas such as driveways and car parks
-
Class C (up to 150 kN / 15 tonnes): Commercial driveways, laneways with heavier vehicles
-
Class D (up to 210 kN / 21 tonnes): Roads with constant heavy vehicle traffic
-
Class E - G (up to 600+ kN): Airports, docks, and industrial facilities with extreme loads
Tip: Always choose a cover with a load class that exceeds expected usage. It prevents premature damage and reduces liability.
Installation Best Practices
For Drain Grates
-
Install at the lowest point of the site for maximum capture
-
Ensure grate slots are sized to balance water intake and debris prevention
-
Seat frames securely to avoid movement
-
Keep grate surface flush with surrounding pavement for safety
For Sewer Lids
-
Seat cover firmly within its frame to avoid rattling
-
Ensure lid is level with the ground surface
-
Use lifting keys or equipment to handle heavy covers safely
-
Consider lockable options in public or sensitive areas
Maintenance Tips
Drain Grates
-
Clear leaves and rubbish after storms
-
Replace damaged or bent grates immediately
-
Inspect frames for rust or wear
Sewer Lids
-
Inspect every 6-12 months
-
Replace cracked, corroded, or displaced lids
-
Check seals to ensure odours and gases remain contained
Pro Tip: Installing leaf guards or silt baskets can reduce maintenance needs by preventing blockages.
Common Mistakes to Avoid
-
Installing a grate in place of a lid: allows odour escape and unauthorised access.
-
Installing a lid instead of a grate: blocks surface drainage, leading to flooding.
-
Choosing the wrong load class: leads to structural failure, rattling, or safety risks.
-
Using makeshift tools: lifting heavy covers without proper keys or hooks is dangerous.
Expanded Use Cases
Residential Projects
-
Grates: Used in driveways and gardens to prevent water pooling.
-
Lids: Cover inspection points for sewer systems.
Commercial Projects
-
Grates: Installed in car parks, shopping centres, and office buildings for stormwater drainage.
-
Lids: Provide safe access to underground stormwater chambers and utilities.
Civil Infrastructure
-
Grates: Found along roads, highways, and footpaths to drain large areas quickly.
-
Lids: Secure entry points for council and utility workers to maintain sewer and drainage networks.
Key Takeaways
-
Drain grates manage surface water.
-
Sewer lids provide sealed access to underground utilities.
-
Both must comply with AS 3996 load standards.
-
The wrong choice risks flooding, odour issues, and safety hazards.
-
Regular maintenance ensures long-term performance.
FAQs
1. Can a drain grate replace a sewer lid?
No. Grates are designed for water flow, while lids are solid covers for sealed access.
2. Are drain grates safe for driveways?
Yes, if they are installed flush with the surface and rated for the correct load class.
3. Why do some sewer lids rattle when cars drive over them?
They are often not seated properly in the frame, or the frame has worn over time.
4. How do I stop drain grates from blocking with leaves?
Install narrow-slot grates, leaf guards, or silt baskets to reduce blockages.
5. What is the standard size of a sewer lid?
Common sizes are 600 mm round or square, but custom dimensions are available for unique projects.
6. Do all manholes need lockable covers?
Not always. Lockable covers are typically required for high-security or sensitive sites such as airports, utilities, or restricted-access areas.
7. How often should covers and grates be inspected?
Every 6-12 months, or more frequently in high-traffic or leafy environments.
Drain grates and sewer lids may look similar, but they perform very different roles in drainage and infrastructure. Grates manage surface water flow, while lids ensure safe, sealed access to underground utilities. Both must be carefully chosen based on load rating, material, and site conditions.
By selecting the correct option and ensuring compliance with AS 3996 standards, you protect infrastructure, reduce risks, and extend the lifespan of your drainage systems.
If you’re planning a project, always consult with suppliers who provide certified drain grates and sewer lids. This ensures compliance, safety, and peace of mind.
For further insights into common drainage mistakes and the value of professional installation, read our full article: "Drainage Grate Replacement: 5 Ordeals You Can Avoid When You Leave It To Experts".
